LT210 1×1 & 1×2 Optical Switch

The LT210 Series of 1×2 and 1×1 (On/Off) optical switches offer PCB mountability combined with an industry leading small footprint. The module height of 5.5mm permits dense system configuration. The LT210 incorporates patented reflective optics technology to deliver outstanding performance and reliability.

Features

– Meets Telcordia 1073 & 1221 Standards

– Low Insertion Loss of 0.5 dB, Typical

– Repeatability of ± 0.02 dB

– High Switching Speed of 5 ms

– Module Configuration Reduces Fiber Routing Problems

– PCB Mountable

– Operates Under Direct Control

– Compact Size – 5.5 x 22 x 48 mm

Applications

– System Redundancy

– Test Access

– Signal Routing and Monitoring – Add/Drop

– Route Diversity

– Component Testing

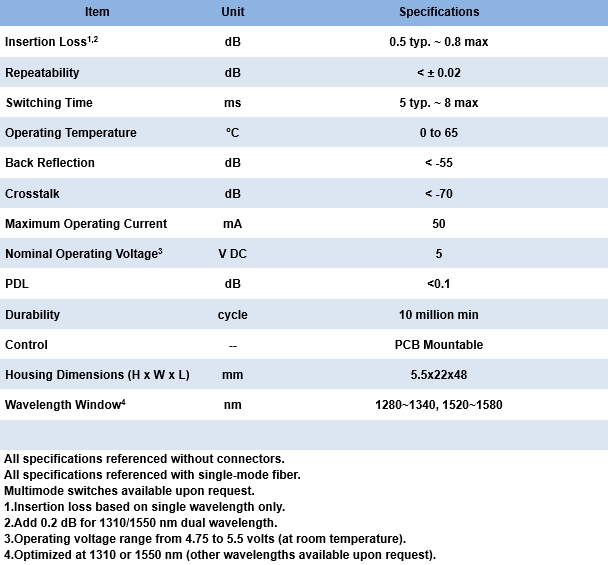

2.4.1 LT210 1x1 & 1x2 Optical Switch

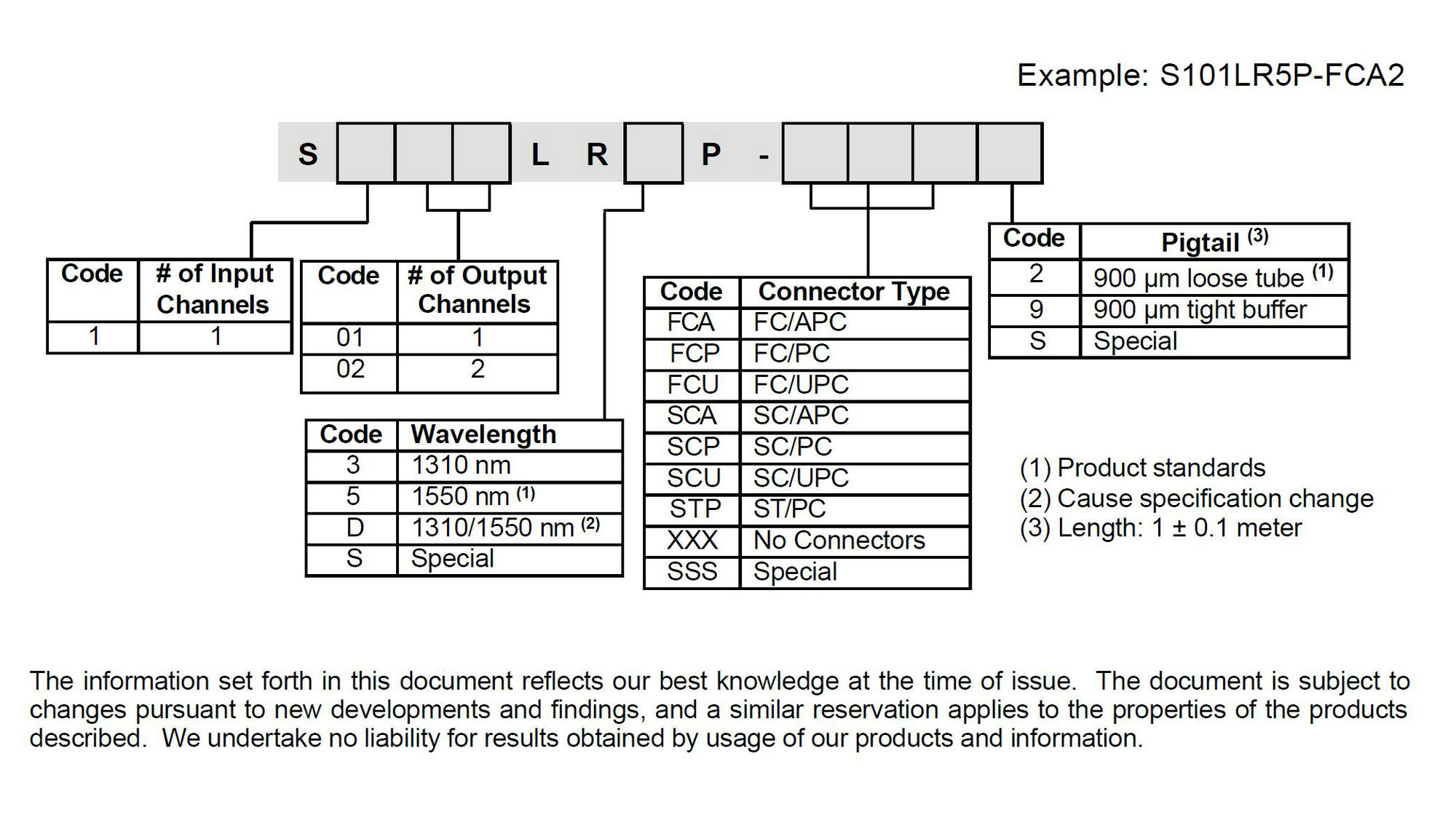

2.4.1 LT210 1x1 _ 1x2 Optical Switch
